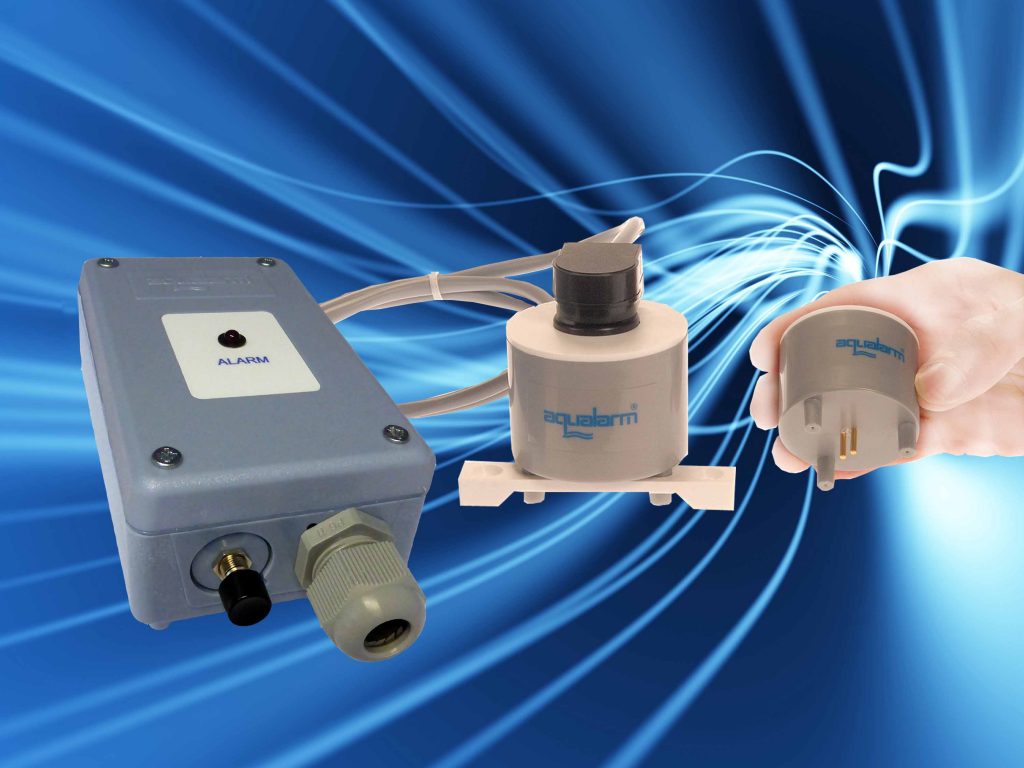

UDP-24 ‘Universal’ Point of use Water Detector
- This detector simply needs a 24 volt power source, and in the event of an alarm a volt-free contact is triggered, giving an alarm signal back to a BMS etc.
- This detector does not require an i-Zone control panel.
- For use within Plant rooms and other solid floor areas.
- For detection of conductive water.
- Manufactured from rust proof and hard wearing ABS plastic.
- Gold plated detecting pins.
- Two component design – keeping head and electronic module separate.
- LED & internal alarm sounder in module to give local alarm indication.
- Multiple types of protection covers are available to prevent mechanical damage.
UDC-24 ‘Universal’ Zone Detector Module
- This detector simply needs a 24 volt power source, and in the event of an alarm a volt-free contact is triggered, giving an alarm signal back to a BMS etc.
- This detector does not require an i-Zone control panel.
- Zone detector module for connection to detecting cable
- Manufactured from rust proof and hard wearing ABS plastic
- LED & internal alarm sounder in module to give local alarm indication

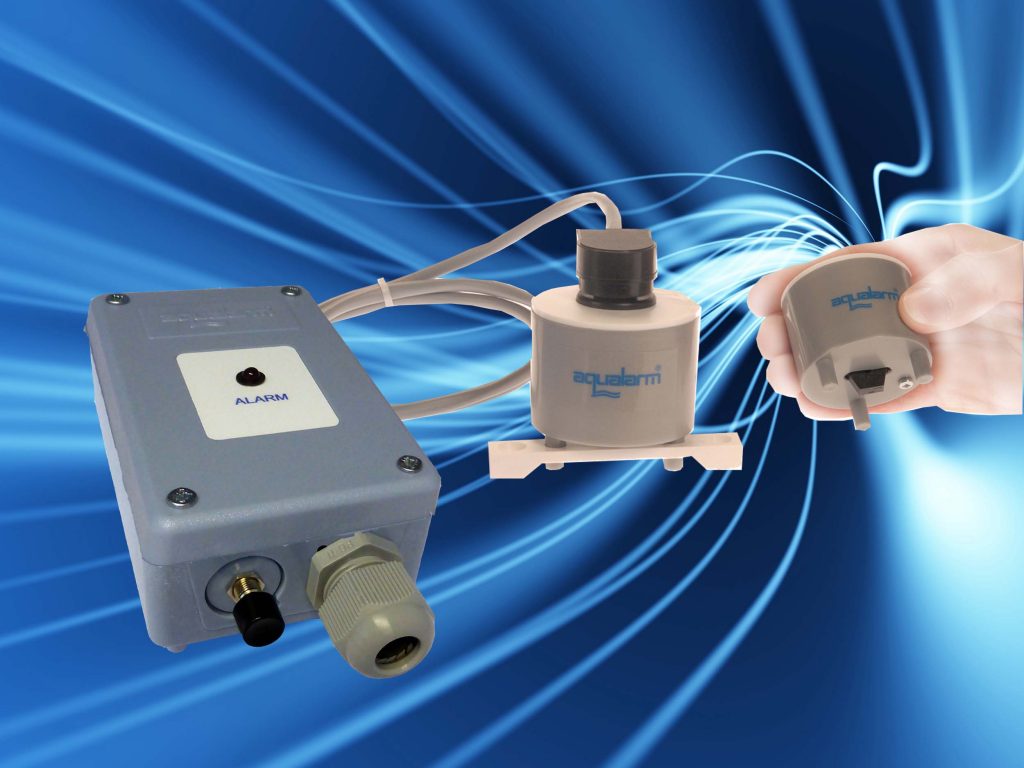

UDIN-24 ‘Universal’ Point of use Infrared Detector
- This detector simply needs a 24 volt power source, and in the event of an alarm a volt-free contact is triggered, giving an alarm signal back to a BMS etc.
- This detector does not require an i-Zone control panel.
- For use within Plant rooms and other solid floor areas
- For the detection of oil, and all other non-conductive liquids
- Manufactured from rust proof and hard wearing ABS plastic
- Two component design – keeping head and electronic module separate
- LED & internal alarm sounder in module to give local alarm indication
- Multiple types of protection covers are available to prevent mechanical damage.
UDOF-24 ‘Universal’ Overflow Detector
- This detector simply needs a 24 volt power source, and in the event of an alarm a volt-free contact is triggered, giving an alarm signal back to a BMS etc.
- This detector does not require an i-Zone control panel.
- For detection of water within an overflow pipe
- ¾” BSP threaded connector for insertion into a tee piece
- Manufactured from rust proof and hard wearing ABS plastic
- For connection to i-Zone or i-Zone Touch control panels
- Two component design – keeping head and electronic module separate
- LED & internal alarm sounder in module to give local alarm indication
UDF-24 ‘Universal’ Float Detector
- This detector simply needs a 24 volt power source, and in the event of an alarm a volt-free contact is triggered, giving an alarm signal back to a BMS etc.
- This detector does not require an i-Zone control panel.
- For use within Sumps, Plant rooms, & water tanks
- Can be set to alarm on the rise or fall of water.
- Manufactured from rust proof and hard wearing ABS plastic
- Float switch held in place by sprung clip.
- Two component design – keeping head and electronic module separate
- LED & internal alarm sounder in module to give local alarm indication
- For connection to i-Zone or i-Zone Touch control panels
