i-Zone Detectors

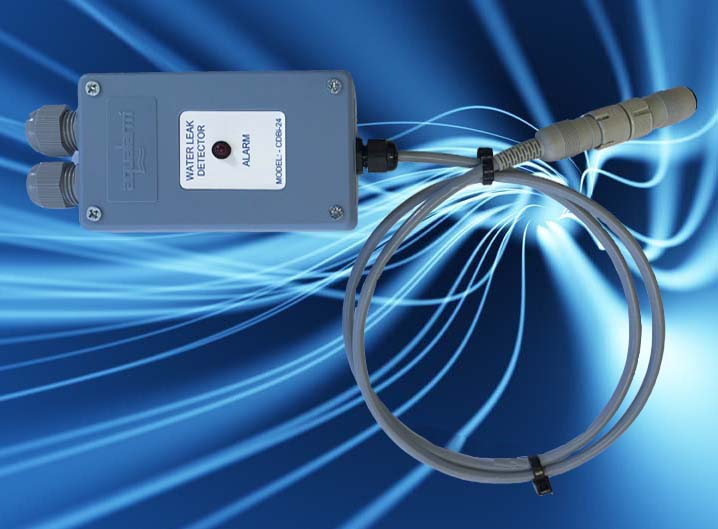

Converts a zoned control panel into a locating system.
This module pinpoints the location of water leaks, or cable damage, anywhere along our detecting cable, with an accuracy of +/- 1 metre.
Can monitor up to 50 metres of combined Leader, Jumper, and Detecting cable.
LED & internal alarm sounder within module, for local alarm indication.
For connection to i-Zone 5/25 or i-Zone Touch control panels only (not compatible with i-Zone Mini panel).

For use within Plant rooms and other solid floor areas.
For detection of conductive water.
Manufactured from rust proof and hard wearing ABS plastic.
Gold plated detecting pins.

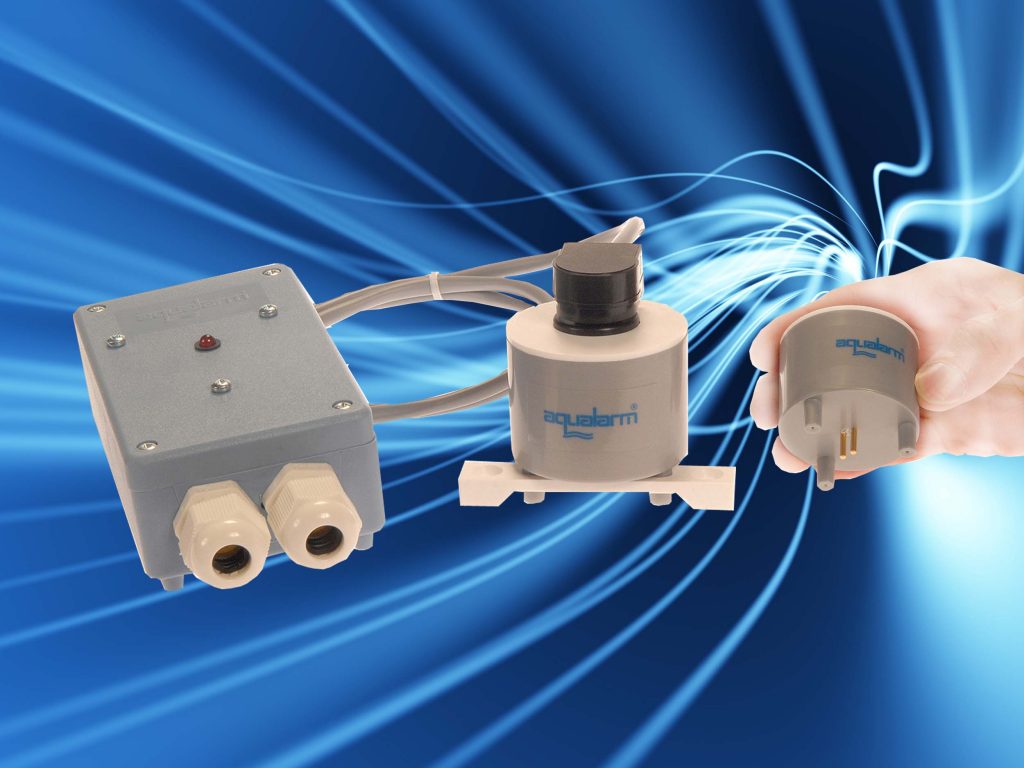

Two component design – keeping head and electronic module separate.
LED & internal alarm sounder in module to give local alarm indication.
Multiple types of protection covers are available to prevent mechanical damage.
For connection to i-Zone 5/25 or i-Zone Touch control panels only (not compatible with i-Zone Mini panel).

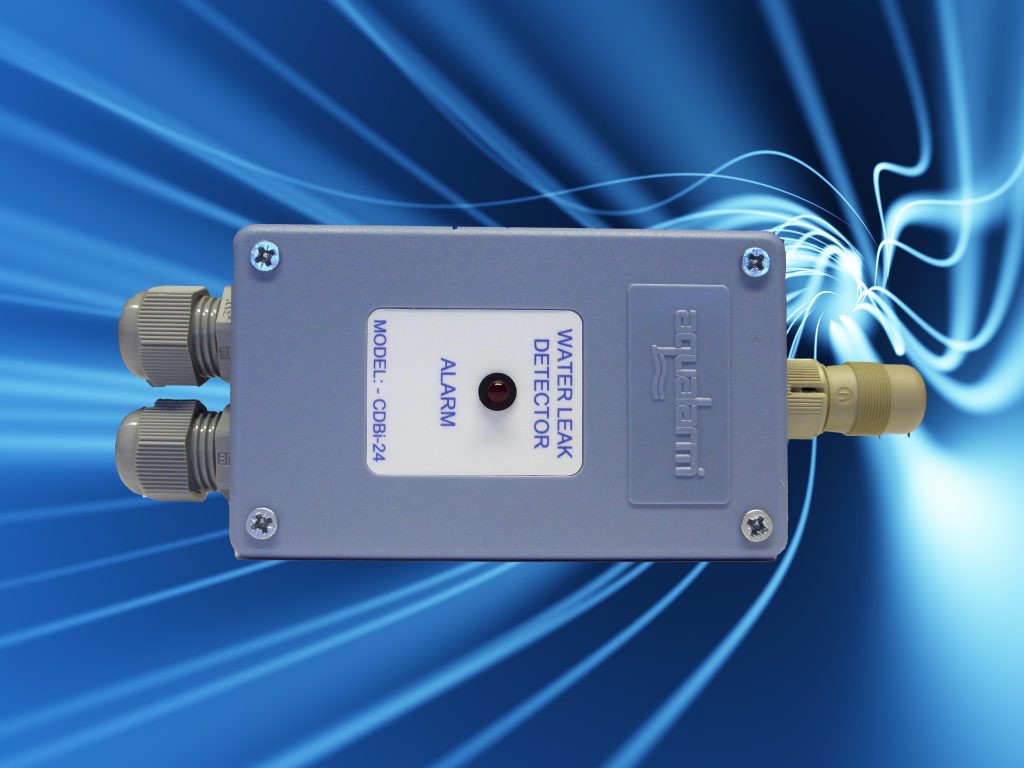

Zone detector module for connection to detecting cable.
Manufactured from rust proof and hard wearing ABS plastic.
LED & internal alarm sounder in module to give local alarm indication.
For connection to i-Zone 5/25 or i-Zone Touch control panels only (not compatible with i-Zone Mini panel).

Detecting cable for all models of control panel.
Constructed from hard wearing Helegaine 66 nylon self extinguishing sleeves giving increased protection against dust & conductive contamination.
Locking plugs and sockets for a secure connection.
Available in modular lengths of 1, 2, 5, & 10 metres.
For connection to Detector Modules and Locating equipment.

For use within Sumps, Plant rooms, & Water tanks.
Can be set to alarm on the rise or fall of water.
Manufactured from rust proof and hard wearing ABS plastic.
Float switch held in place by sprung clip.
Two component design – keeping head and electronic module separate.
LED & internal alarm sounder in module to give local alarm indication.
For connection to i-Zone 5/25 or i-Zone Touch control panels only (not compatible with i-Zone Mini panel).

For use within Plant rooms and other solid floor areas.
For the detection of oil, and all other non-conductive liquids.
Manufactured from rust proof and hard wearing ABS plastic.
Two component design – keeping head and electronic module separate.
LED & internal alarm sounder in module to give local alarm indication.
Multiple types of protection covers are available to prevent mechanical damage.
For connection to i-Zone 5/25 or i-Zone Touch control panels only (not compatible with i-Zone Mini panel).

For detection of water within an overflow pipe.
¾” BSP threaded connector for insertion into a tee piece.
Manufactured from rust proof and hard wearing ABS plastic.
Two component design – keeping head and electronic module separate.
LED & internal alarm sounder in module to give local alarm indication.
For connection to i-Zone 5/25 or i-Zone Touch control panels only (not compatible with i-Zone Mini panel).

Ideal for use within Computer rooms, Museums, Art galleries, and anywhere which requires accurate and rapid notification of fluctuations outside of the preset levels.
One Low level, and Two High Level alarm points can be selected.
LED & internal alarm sounder within detector, for local alarm indication.
For connection to i-Zone 5/25 or i-Zone Touch control panels only (not compatible with i-Zone Mini panel).
Manufactured from rust proof and hard wearing ABS plastic.

Ideal for use within Computer rooms, Museums, Art galleries, and anywhere which requires accurate and rapid notification of fluctuations outside of the preset levels.
One Low level, and Two High Level alarm points can be selected.
LED & internal alarm sounder within detector, for local alarm indication.
For connection to i-Zone 5/25 or i-Zone Touch control panels only (not compatible with i-Zone Mini panel).
Manufactured from rust proof and hard wearing ABS plastic.

Made to detect the leakage of refrigerant gas from air conditioning units within buildings
Cost effective design.
Detection heads available for all commonly used refrigerant gases.
LED & internal alarm sounder within detector, for local alarm indication.
For connection to i-Zone 5/25 or i-Zone Touch control panels only (not compatible with i-Zone Mini panel).
Manufactured from rust proof and hard wearing ABS plastic.
