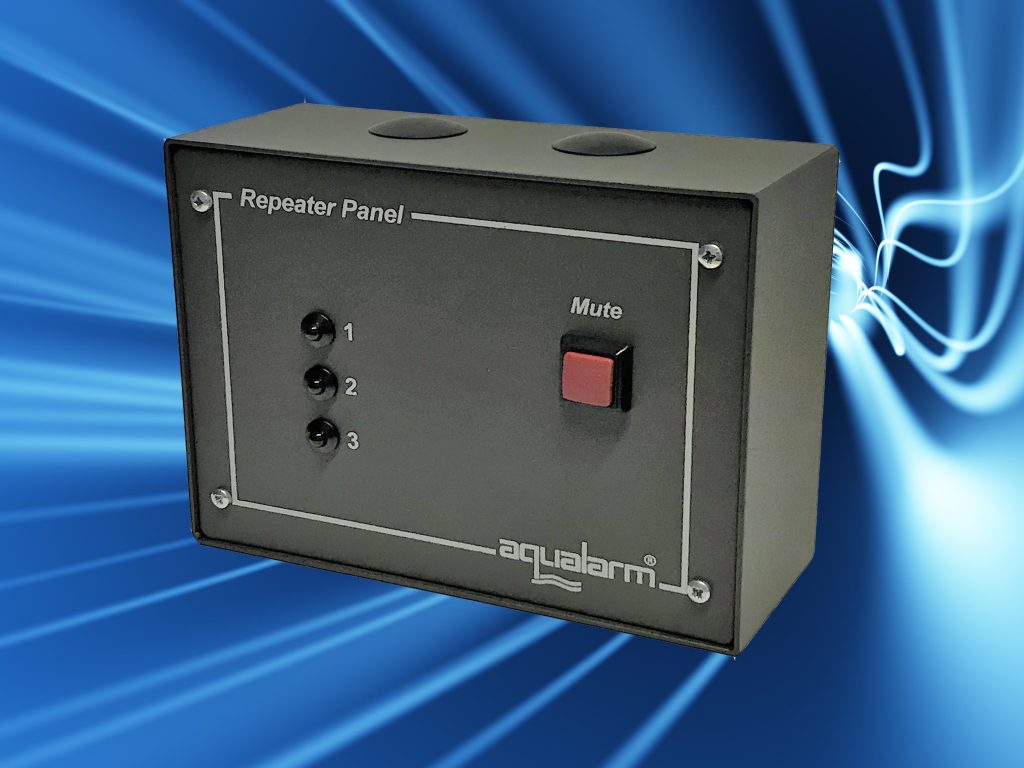

RP1/3 Repeater Panel
- This panel is used to mimic the status of the main i-Zone panel.
- Available in three options, to monitor 1-3 main panels.
- Each panel is represented by a separate LED.
- Internal 97db @ 1/m sounder.
- Accept button to silence local alarm.
- Made of powder coated mild steel.
- For connection to i-Zone or i-Zone Touch control panels.

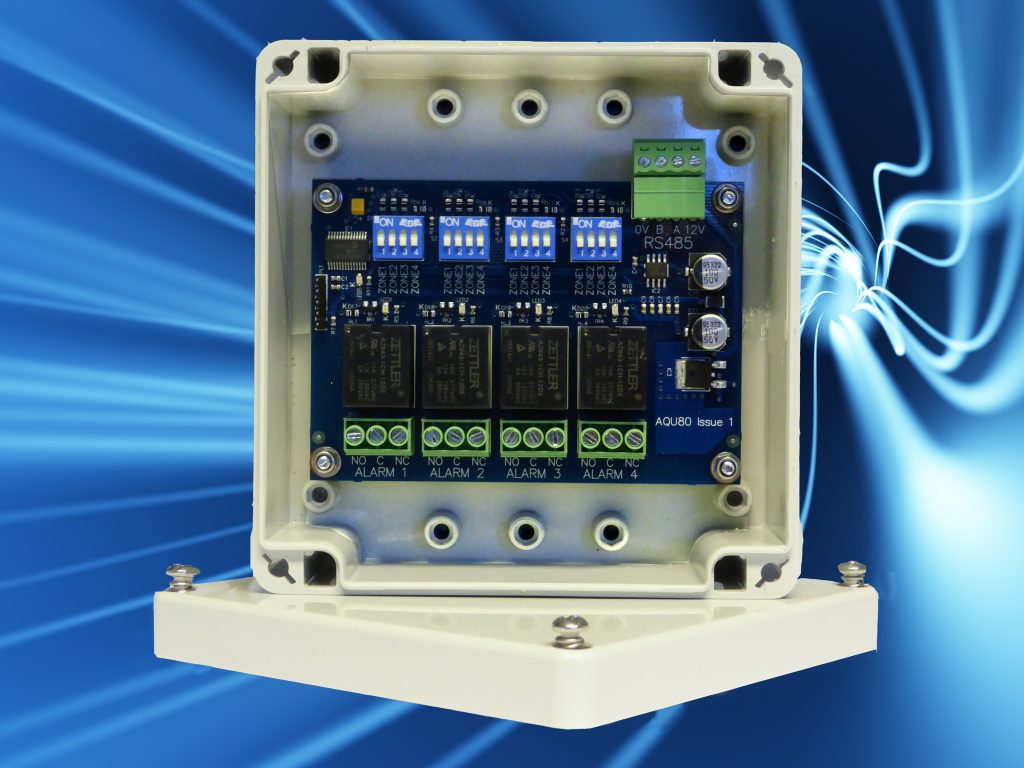

SWRi-4 Four Output Programmable Relay pack for I-Zone Mini Control Panels
- Each of the 4 relays can either be used to switch ancillary items, or as zone dedicated outputs.
- Each relay can be programmed to trigger on an alarm from any panel zone.
- Contact ratings SPCO 15A @ 240v AC or 24v DC.
- Housed in an IP54 rated box.
- For connection to i-Zone Mini Control Panels only.

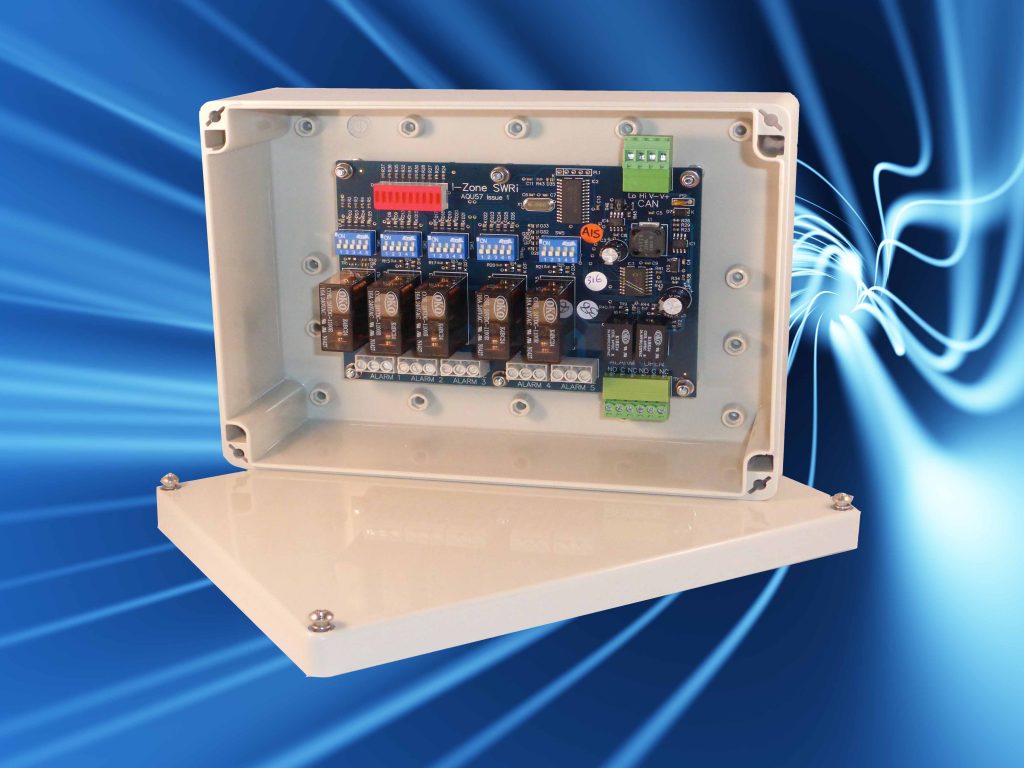

SWRi-5 Five Output Programmable Relay pack
- Each of the 5 relays can either be used to switch ancillary items, or as zone dedicated outputs.
- Each relay can be programmed to trigger on an alarm from any panel zone.
- Contact ratings SPCO 16A @ 240v AC or 24v DC.
- Housed in an IP54 rated box.
- For connection to i-Zone or i-Zone Touch control panels.
iZ/FM3
- Semi Flush mount frame
- Suitable for i-Zone Touch 1.2 Control Panels.
iZ/FM4
- Semi Flush mount frame
- Suitable for i-Zone Mini Control Panels.
PC-3 Heavy Duty Protection Cover
- Provides heavy duty mechanical protection to ‘Aqualarm’ Point of Use detectors.
- Made from powder coated mild steel.
- 4 fixing points to allow cover to be fixed to the floor surface.
- This cover holds the detector head in place, replacing the need for an SB-1
WMB-01 Wall Mount Bracket
- Allows ‘Aqualarm’ detector modules to be wall mounted.
- Bracket has four fixing holes on the back, and two side holes for module fixing if required, and increasing the visibility of the alarm LED.
- Made from powder coated mild steel.
